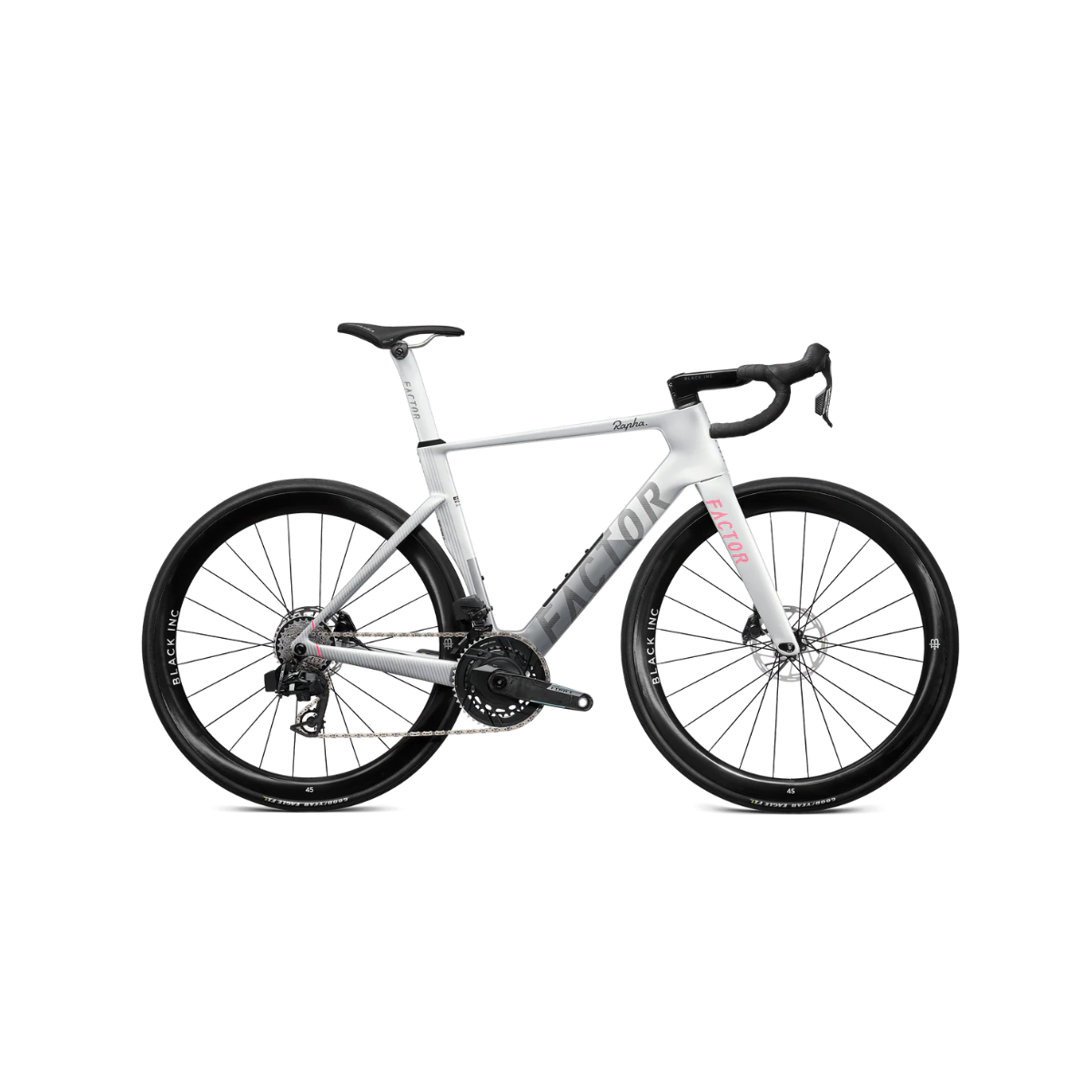

rapha mountainbike Factor Monza Complete - SRAM Force +PM
SKU: 41760586657
rapha mountainbike

rapha mountainbike Factor Monza Complete - SRAM Force +PM

Sale price$26.60 Regular price$29.55
Save 10%

Pay in installments of $7.39 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jun 30 - Jul 5

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

rapha mountainbike Factor Monza Complete - SRAM Force +PMPlease advise integrated barstem size, crank length, post type and Garmin or wahoo for mount option. Factor and Rapha deepen their collaborative relationship with the Factor MONZA Rapha Edition. The elegantly designed graphic balances and unites each brands visual language, while highlighting the beauty of the precision of the carbon lay up. The MONZA is perfect for committed, ambitious cyclists who ride daily and find joy in testing themselves.

Please advise integrated barstem size, crank length, post type and Garmin or wahoo for mount option.

Factor and Rapha deepen their collaborative relationship with the Factor MONZA Rapha Edition. The elegantly designed graphic balances and unites each brands’ visual language, while highlighting the beauty of the precision of the carbon lay-up. The MONZA is perfect for committed, ambitious cyclists who ride daily and find joy in testing themselves.

Drawing on the developmental DNA of the OSTRO VAM - independently tested as the world’s fastest road bike and proven in World Tour victories with Israel Premier Tech - the MONZA carries this racing pedigree forward in a refined and streamlined package.

The MONZA retains an aero-optimised frame, tuned for efficiency in real-world
racing conditions while refining certain features and materials to reduce
manufacturing complexity and costs. Similar to the OSTRO VAM, the MONZA utilises an integrated and aero-optimised front end that has been meticulously designed to promote flow attachment and reduce drag.

However, unlike Factor’s flagship all-round road machine, the MONZA features a planar break between the fork and frame. This approach enables Factor to deliver refined elite-level performance to a wider cycling audience.

The MONZA’s design leverages the OSTRO VAM’s proven technology with a more streamlined approach. The head tube and fork feature converging contours, while the top tube, seat stays, and chain stays have smaller-profiled tube sections with tighter, more refined lines—enhancing both aerodynamics and manufacturing efficiency.

A strategic carbon layup reduces cost while maintaining Factor’s signature ride feel. The MONZA’s balanced stiffness-to-weight ratio ensures explosive power transfer and efficiency at high speeds.

With an ambition to deliver handling identical to Factor’s WorldTour race bikes, the slightly democratised fit features an increased stack height by 10 mm. This allows for a broader range of rider flexibility and comfort without sacrificing performance. Retaining the responsive ride feel Factor racers demand, the head-tube angle and fork offset are identical to the OSTRO VAM. The short chain stay lengths and wheelbase are also the same, tuned for both fast-moving pelotons and solo rides.

An all-new HB04 integrated, semi-aero barstem features optimised hand positioning and moulded cable entry ports. This reduces machining complexities and facilitates easy cable routing while offering a clean, simplified front end.

Retaining an aero-first design, the MONZA's head-tube assembly prioritises a pragmatic approach with a simpler round steerer than the OSTRO VAM’s, paired with a larger 1.5" bearing. This allows for more straightforward internal cable routing for cyclists to set up and adjust their position.

Integrated in-frame storage, inspired by the SLiCK, features a convenient latch
mechanism for easy access to ride essentials—without compromising aerodynamics. This design saves up to six watts of drag while lowering the centre of gravity. With 34 mm tyre clearance, the MONZA hits the sweet spot between aerodynamics and versatility, ensuring optimal performance in real-world conditions.

With up to 34 mm tyre clearance, the MONZA is well-suited to handle the kinderkopf cobbles of northern France. The bike has been paired with the Black Inc FIFTY EIGHT Wheelset for Roubaix race day to enhance the overall durability and comfort of the setup. The FIFTY EIGHT offer greater vertical compliance with steel spokes that can absorb the constant impacts. The modern (23 mm) inner rim width (IRW) provides sufficient support to race aggressively on wider volume tyres at very low pressures.

MONZA is not a compromise; it is Factor’s vision of performance, redefined for the modern racer, tuned for efficiency.

Specs

Frame Toray®, Nippon Graphite® Pan-Based Fiber
Fork MONZA Wide Stance Fork
Seatpost 0 and 25mm setback available
Barstem Black Inc Integrated Barstem Reach 75mm, drop 116mm. Multiple stem lengths and bar widths available
Headset 1.5″ bearings
Head Tube Diameter 1.5″ upper and lower
Saddle Rail Clamps 7x7 and 7x9
Bottom Bracket Standard Package: n/a
SRAM DUB T47a / FSA (SH24)
Cable Routing Internal
Compatible Components Electronic
Brake type Disc
Max Rotor Size 160mm front & rear
Max Chainring 54-tooth
Front Axle 12 x 100mm thru-axle
Rear Axle 12 x 142mm thru-axle
Wheelset Black Inc 45
Wheel Size 700c
Max Tire Clearance 34mm Measured
Manufacturer Warranty Limited Lifetime Warranty
Groupset SRAM FORCE AXS E1 w/ Power Meter
Speed 2x12-speed
Crank 48/35T
Cassette 10-33T
Rotors 160mm
Wheelset Black Inc FORTY FIVE
Spokes 24 Aero Butted straight pull
Nipples Internal Brass Nipple
Weights 1595g (Front: 700g, Rear: 895g)
*Weight excludes tubeless tape and certain metal parts.
Compatibility Shimano HG 10/11 speed cassette
SRAM 10/11 speed cassette / SRAM 12 speed cassette
Campagnolo 11/12 speed cassette
Hub Front: HU-03B Alloy Body
Rear: Aluminum Body, 24 tooth 3-pawl + 3 leaf spring freehub
Hub Width Front: 100mm / Rear: 142mm
Axle type 12mm Thru Axle
Bearings Stainless Steel
Brake interface Center Lock
ASTM Classification Level 1- Suitable for road riding (only)
Material Carbon Fiber
Finish UD glossy clearcoat
Type interface Tubeless and Clincher (inner tube)
Recommended tyre size 700c x 28mm
Rim height Front, Rear: 45mm
Rim width Internal: 21mm / External: 27mm
Decals Water Transfer
Assembly The FORTY FIVE disc brake wheels are hand built by artisanal wheel builders and inspected with the latest electronic machines. This process gurantees that every single wheel's quality, performance and reliability.
